This use case implements a comprehensive Device Management System using Amazon Bedrock AgentCore. It provides a unified interface for managing IoT devices, WiFi networks, users, and activities through AWS Lambda, allowing users to interact with their smart home devices through natural language.

Information	Details
Use case type	Conversational
Agent type	Single agent
Use case components	Tools, Gateway
Use case vertical	IoT/Smart Home
Example complexity	Intermediate
SDK used	Amazon Bedrock AgentCore SDK, boto3

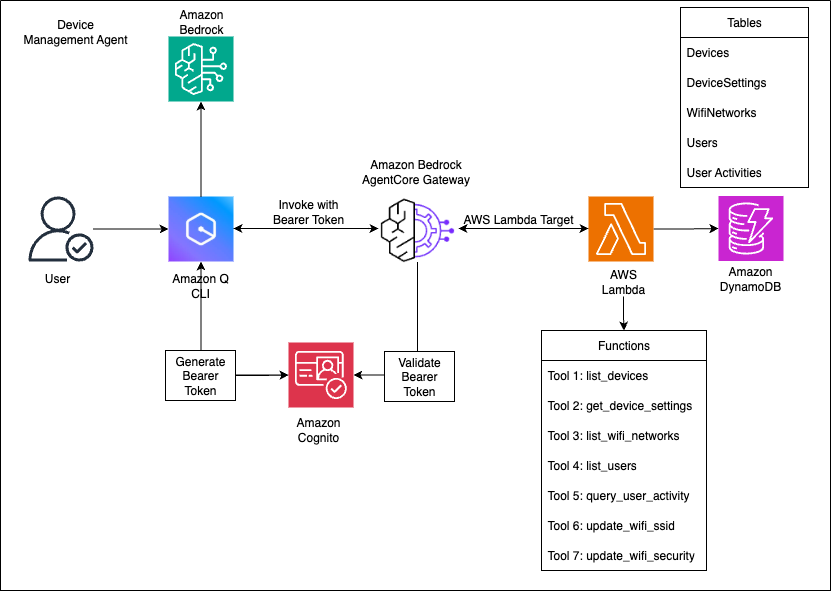

Use case Architecture

Process Flow

User Interaction: Users interact with the Device Management system through Amazon Q or other clients that support the MCP protocol.
Request Processing:
- The request is sent to Amazon Bedrock AgentCore
- AgentCore routes the request to the appropriate Gateway
- The Gateway forwards the request to the Gateway Target (Lambda function)
Tool Execution:
- The Lambda function receives the request and identifies the appropriate tool to execute
- The function interacts with DynamoDB tables to perform CRUD operations
- Results are processed and formatted according to the MCP protocol
Response Flow:
- The Lambda function returns the response to the Gateway
- The Gateway forwards the response back to AgentCore
- AgentCore delivers the response to the client
Data Flow: All device data, user information, and configuration settings are stored in and retrieved from DynamoDB tables.

Use case key Features

The Device Management System provides the following capabilities:

List devices in the system
Get device settings
List WiFi networks for a device
Update WiFi network settings (SSID, security type)
List users within an account
Query user activity within a time period

Prerequisites

Python 3.10+
AWS account with appropriate permissions
boto3 and Amazon Bedrock AgentCore SDK
Cognito User Pool with configured app client
Cognito Domain (optional but recommended for hosted UI)
IAM Role for Bedrock Agent Core Gateway with appropriate permissions

Attach the below policy to your IAM role:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "iam:PassRole",
                "bedrock-agentcore:*"
            ],
            "Resource": "*"
        }
    ]
}

Use case setup

1. Environment Configuration

Create a .env file in the project root with the following variables:

# AWS and endpoint configuration
AWS_REGION=<Your AWS Region>
ENDPOINT_URL=https://bedrock-agentcore-control.<REGION>.amazonaws.com

# Lambda configuration
LAMBDA_ARN=arn:aws:lambda:<REGION>:your-account-id:function:DeviceManagementLambda

# Target configuration
GATEWAY_IDENTIFIER=your-gateway-identifier
TARGET_NAME=device-management-target
TARGET_DESCRIPTION=List, Update device management activities

# Gateway creation configuration
COGNITO_USERPOOL_ID=your-cognito-userpool-id
COGNITO_APP_CLIENT_ID=your-cognito-app-client-id
GATEWAY_NAME=Device-Management-Gateway
ROLE_ARN=arn:aws:iam::your-account-id:role/YourGatewayRole
GATEWAY_DESCRIPTION=Device Management Gateway

2. Install Dependencies

Install the required Python packages:

pip install -r requirements.txt

3. Deploy the Lambda Function

You can deploy the Lambda function using the provided deployment script:

chmod +x deploy.sh
./deploy.sh

The deployment script performs the following actions:

Packages the Lambda function code with dependencies
Creates an IAM role with necessary permissions (if it doesn't exist)
Creates or updates the Lambda function
Configures the function with appropriate memory and timeout settings

4. Create a Gateway (Optional if you want to use the existing gateway)

To create a new gateway, execute the below script:

python create_gateway.py

5. Create Gateway Target

After deploying the Lambda function, create a gateway target to expose the Lambda function as targets:

python device-management-target.py

6. Generate Test Data (Optional)

To populate the tables with synthetic test data:

python synthetic_data.py

Execution instructions

1. Test the Lambda Function

You can test the Lambda function locally using the provided test script:

python test_lambda.py

2. Invoking tools using Q CLI

Generating the Bearer Token

To generate the Bearer token required for authentication, use the following curl command to request an access token from the Cognito OAuth2 endpoint:

curl --http1.1 -X POST https://<cognito domain>.auth.us-west-2.amazoncognito.com/oauth2/token \
-H "Content-Type: application/x-www-form-urlencoded" \
-d "grant_type=client_credentials&client_id=<client id>&client_secret=<client_secret>"

This command will return a JSON response containing the access token that should be used as the Bearer token in the MCP configuration.

Configuring MCP

Update the mcp.json file with this config:

cd ~/.aws/amazonq
vi mcp.json
## Update this json
{
  "mcpServers": {
    "<you_desired_mcp_server_name>": {
      "command": "npx",
      "timeout": 60000,
      "args": [
        "mcp-remote@latest",
        "https://<gateway id>.gateway.bedrock-agentcore.<REGION>.amazonaws.com/mcp",
        "--header",
        "Authorization: Bearer <Bearer token>"
      ]
    }
  }
}

Replace <Bearer token> with the access token obtained from the Cognito authentication request.

3. Sample prompts:

"Can you list all the dormant devices?"
"Can you update SSID for my device ID DG-10016 to XXXXXXXXXX'?"
"Can you list all the available tools?"
"Can you show me the device settings for the device ID DG-10016?"
"Can you show me the Wifi setting for the device ID DB-10005?"

Clean up instructions

To clean up resources created by this use case:

Delete the Lambda function:

aws lambda delete-function --function-name DeviceManagementLambda

Delete the Gateway Target:

aws bedrock-agentcore delete-gateway-target --gateway-identifier <your-gateway-identifier> --target-name device-management-target

Delete the Gateway (if you created a new one):

aws bedrock-agentcore delete-gateway --gateway-identifier <your-gateway-identifier>

Delete the DynamoDB tables (if you created them for this use case):

aws dynamodb delete-table --table-name Devices
aws dynamodb delete-table --table-name DeviceSettings
aws dynamodb delete-table --table-name WifiNetworks
aws dynamodb delete-table --table-name Users
aws dynamodb delete-table --table-name UserActivities

Disclaimer

The examples provided in this repository are for experimental and educational purposes only. They demonstrate concepts and techniques but are not intended for direct use in production environments. Make sure to have Amazon Bedrock Guardrails in place to protect against prompt injection.

Additional Information

Files

lambda_function.py: Main Lambda handler that implements all MCP tools
dynamodb_models.py: DynamoDB table definitions and initialization
synthetic_data.py: Script to generate synthetic test data
requirements.txt: Python dependencies
deploy.sh: Deployment script for the Lambda function
create_gateway.py: Script to create a gateway for the MCP server
device-management-target.py: Script to create a gateway target for the Lambda function
.env: Environment variables configuration file
test_lambda.py: Script to test the Lambda function locally

IAM Permissions

The Lambda function requires the following IAM permissions:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "dynamodb:GetItem",
        "dynamodb:Query",
        "dynamodb:Scan",
        "dynamodb:UpdateItem"
      ],
      "Resource": [
        "arn:aws:dynamodb:<Region>:*:table/Devices",
        "arn:aws:dynamodb:<Region>:*:table/DeviceSettings",
        "arn:aws:dynamodb:<Region>:*:table/WifiNetworks",
        "arn:aws:dynamodb:<Region>:*:table/Users",
        "arn:aws:dynamodb:<Region>:*:table/UserActivities",
        "arn:aws:dynamodb:<Region>:*:table/UserActivities/index/ActivityTypeIndex"
      ]
    }
  ]
}

Troubleshooting

Missing environment variables: Ensure all required variables are set in the .env file
Lambda deployment failures: Check AWS IAM permissions and Lambda service quotas
Gateway creation failures: Verify the Cognito User Pool ID, App Client ID, and IAM role ARN
Gateway target creation failures: Verify the gateway identifier and Lambda ARN are correct
DynamoDB access issues: Confirm the Lambda execution role has the necessary permissions
