This directory contains an AI-powered agent for analyzing PostgreSQL database performance using Amazon Bedrock AgentCore. The agent provides comprehensive database analysis capabilities through natural language interactions, enabling query performance analysis, DDL extraction, slow query identification, and system health monitoring without requiring deep database expertise.

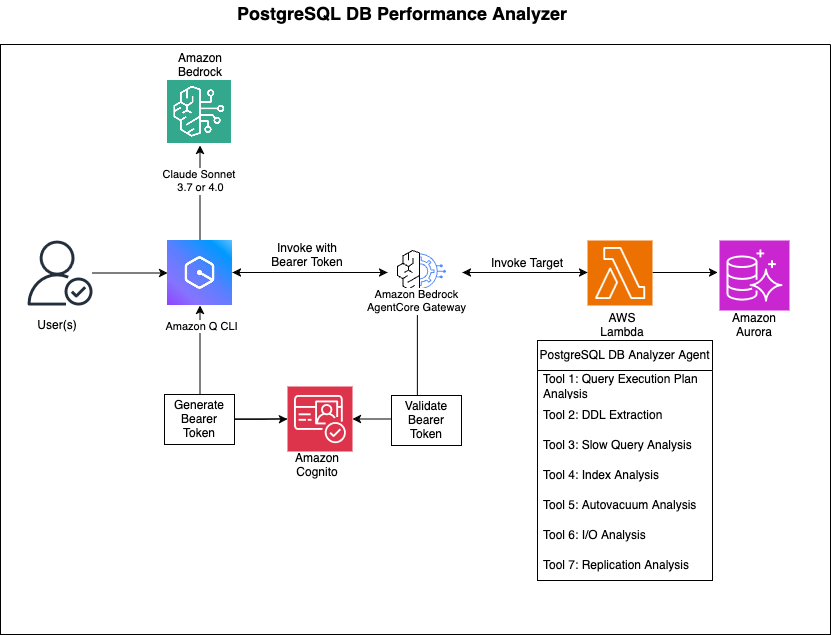

Architecture Diagram

Use Case Details

Information	Details
Use case	Analyzing PostgreSQL database performance using Amazon Bedrock AgentCore. The agent provide comprehensive database analysis capabilities including query performance, DDL extraction, slow query analysis, and system health monitoring.
Use case type	Conversational
Agent type	Single agent
Use case components	Tools, Gateway
Use case vertical	All Industries
Example complexity	Intermediate
SDK used	Amazon Bedrock AgentCore SDK, boto3

Process Flow

User Interaction: Users engage with the database analysis agent through natural language conversations in Amazon Q or other clients that support the MCP protocol.
Request Processing:
- The user's question is sent to Amazon Bedrock AgentCore
- AgentCore interprets the intent and routes the request to the appropriate Gateway
- The Gateway translates the natural language request into specific database operations
Analysis Execution:
- The agent securely accesses database credentials from AWS Secrets Manager
- The agent establishes a connection to the PostgreSQL database (Aurora or RDS)
- Appropriate analysis queries are executed based on the user's request
- Results are processed and formatted into human-readable insights
Response Flow:
- The agent compiles the analysis results into a coherent response
- Technical database information is translated into clear, actionable insights
- The agent delivers the response to the user in natural language
Security & Configuration:
- All database credentials are securely stored and never exposed to users
- Environment-specific configurations enable context-aware analysis
- The agent operates with least-privilege access principles

Agent Components

Intelligence Modules

Query Analysis Engine - Enables the agent to understand, explain, and optimize SQL queries
Performance Monitoring System - Powers the agent's ability to identify performance bottlenecks and provide recommendations

Integration Components

Gateway Configuration - Connects the agent to Amazon Bedrock AgentCore ecosystem
Database Connectivity - Secure connection management between the agent and PostgreSQL databases

Technical Implementation

The agent is implemented using AWS Lambda functions with PostgreSQL connectivity
Secure authentication is handled through Amazon Cognito integration
All components communicate using the Model Context Protocol (MCP)

Agent Capabilities

What You Can Ask the Agent

Query Understanding - "Can you explain how this query works and suggest optimizations?"
Schema Exploration - "Show me the structure of the users table and its relationships"
Performance Investigation - "Why are my queries running slowly in the production database?"
Connection Troubleshooting - "Help me understand why we're seeing too many database connections"
Index Recommendations - "Analyze my table and suggest indexes that would improve performance"
Maintenance Insights - "Is autovacuum working properly on my large tables?"
Resource Utilization - "Show me which queries are causing the most I/O on the database"
Replication Monitoring - "Check if my database replication is healthy and in sync"
Health Assessment - "Give me an overall health check of my PostgreSQL database"
Custom Analysis - "Run this specific query and explain the results in simple terms"

Prerequisites

AWS Services Required

AWS Lambda - Serverless compute for analysis functions
Amazon Bedrock Agent Core - AI agent runtime and gateway capabilities
Amazon Aurora PostgreSQL or Amazon RDS PostgreSQL - Target database for analysis
Amazon Cognito User Pool - Authentication and user management
AWS Secrets Manager - Secure storage of database credentials
AWS Systems Manager Parameter Store - Configuration management
AWS IAM - Identity and access management with appropriate roles and policies

Authentication & Security Requirements

Cognito User Pool with configured app client
Cognito Domain (optional but recommended for hosted UI)
IAM Role for Bedrock Agent Core Gateway with appropriate permissions Attach the below policy to your IAM role

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "iam:PassRole",
                "bedrock-agentcore-control:*"
            ],
            "Resource": "*"
        }
    ]
}

Lambda Execution Role with permissions for:
- Secrets Manager access
- Parameter Store access
- VPC access (if database is in private subnet)
- CloudWatch Logs

Database Requirements

PostgreSQL 14+ (Aurora PostgreSQL or RDS PostgreSQL)
pg_stat_statements extension enabled for performance analysis
Database user with appropriate read permissions:
- SELECT on system catalogs (pg_stat_*, information_schema)
- CONNECT privilege on target databases
- Usage on schemas being analyzed

Network Requirements

VPC Configuration - Lambda functions must have network access to database
Security Groups - Proper ingress/egress rules for database connectivity
Subnets - Lambda functions deployed in subnets with database access

Setup Instructions

1. Environment Variables

Set the following environment variables for your Lambda functions:

Required Variables

# AWS Configuration
AWS_REGION=us-west-2
REGION=us-west-2

# Bedrock Agent Core
ENDPOINT_URL=https://bedrock-agentcore-control.us-west-2.amazonaws.com
GATEWAY_IDENTIFIER=your-gateway-identifier
LAMBDA_ARN=arn:aws:lambda:region:account:function:your-function-name

# Authentication (for gateway creation)
COGNITO_USERPOOL_ID=your-cognito-user-pool-id
COGNITO_APP_CLIENT_ID=your-cognito-app-client-id
ROLE_ARN=arn:aws:iam::account:role/your-gateway-role

# Optional Configuration
TARGET_NAME=pg-analyze-db-performance
TARGET_DESCRIPTION=PostgreSQL database performance analysis tool
GATEWAY_NAME=Aurora-Postgres-DB-Analyzer-Gateway
GATEWAY_DESCRIPTION=Aurora Postgres DB Analyzer Gateway

2. Database Secrets Configuration

Store database credentials in AWS Secrets Manager with the following format:

{
  "host": "your-db-cluster-endpoint",
  "dbname": "your-database-name",
  "username": "your-db-username",
  "password": "your-db-password",
  "port": 5432
}

3. Parameter Store Configuration

Create SSM parameters for environment-specific secret names:

# For production environment
aws ssm put-parameter \
  --name "/AuroraOps/prod" \
  --value "your-prod-secret-name" \
  --type "String"

# For development environment
aws ssm put-parameter \
  --name "/AuroraOps/dev" \
  --value "your-dev-secret-name" \
  --type "String"

4. Lambda Function Deployment

Create Lambda Layer:

aws lambda publish-layer-version \
  --layer-name psycopg2-layer \
  --zip-file fileb://psycopg2-layer.zip \
  --compatible-runtimes python3.9 python3.10 python3.11 python3.12

Deploy Lambda Functions:

# Deploy performance analysis function
aws lambda create-function \
  --function-name genesis-pg-analyseobjects-lambda \
  --runtime python3.12 \
  --role arn:aws:iam::account:role/lambda-execution-role \
  --handler pg-analyze-performance.lambda_handler \
  --zip-file fileb://function.zip \
  --layers arn:aws:lambda:region:account:layer:psycopg2-layer:1

# Deploy slow query analysis function
aws lambda create-function \
  --function-name pgstat-analyse-database \
  --runtime python3.12 \
  --role arn:aws:iam::account:role/lambda-execution-role \
  --handler pgstat-analyse-database.lambda_handler \
  --zip-file fileb://function.zip \
  --layers arn:aws:lambda:region:account:layer:psycopg2-layer:1

5. Gateway and Target Registration

Create Gateway:
```
python create_gateway.py
```

Register Lambda Targets:

python lambda-target-analyze-db-performance.py
python lambda-target-analyze-db-slow-query.py

Connecting with the Database Analysis Agent

Setting Up Amazon Q CLI for Agent Conversations

To start conversing with your PostgreSQL Database Analysis Agent, configure the Amazon Q CLI by updating your mcp.json file:

cd ~/.aws/amazonq
vi mcp.json

Add your agent configuration:

{
  "mcpServers": {
    "postgres-db-agent": {
      "command": "npx",
      "timeout": 60000,
      "args": [
        "mcp-remote@latest",
        "https://<gateway id>.gateway.bedrock-agentcore.us-west-2.amazonaws.com/mcp",
        "--header",
        "Authorization: Bearer <Bearer token>"
      ]
    }
  }
}

After configuration, you can start a conversation with your agent using:

amazonq chat --server postgres-db-agent

Sample Conversations

1. Query Performance Analysis

User: "Can you analyze this query and tell me how to make it faster? SELECT * FROM users WHERE email = 'user@example.com'"

Agent: "I've analyzed your query that selects users by email. Here's what I found:

Execution Plan: This query performs a sequential scan on the users table, which is inefficient for large tables.
Performance Issue: Searching by email without an index requires checking every row in the table.
Recommendation: Create an index on the email column to dramatically improve performance:
```
CREATE INDEX idx_users_email ON users(email);
```
Expected Improvement: With this index, the query will use an index scan instead of a sequential scan, potentially improving performance by 10-100x depending on table size.

Would you like me to explain more about how indexes work or help with creating this index?"

2. Schema Exploration

User: "Show me the structure of the orders table"

Agent: "I've examined the orders table structure in your database. Here's what I found:

Table: orders

Column	Type	Constraints
order_id	integer	Primary Key
customer_id	integer	Foreign Key (customers.id)
order_date	timestamp	Not Null
status	varchar(20)	Not Null, Check (status in ('pending','processing','shipped','delivered','cancelled'))
total_amount	numeric(10,2)	Not Null
shipping_address	text	Not Null
payment_method	varchar(50)	Not Null
created_at	timestamp	Default: now()
updated_at	timestamp	Default: now()

Indexes:

Primary Key: orders_pkey (order_id)
Foreign Key: orders_customer_id_idx (customer_id)
Additional: orders_order_date_idx (order_date)

The table has relationships with:

customers table (via customer_id)
order_items table (via order_id)

Would you like me to show you the related tables or help you query this table?"

3. Database Health Check

User: "Give me a health check of my production database"

Agent: "I've performed a comprehensive health check on your production database. Here's my analysis:

Overall Health: Good, with some areas for improvement

✅ Connection Pool: 42/100 connections used (Healthy)

⚠️ Slow Queries: 3 queries taking >500ms (Attention needed)

Query on orders table missing index on order_date
JOIN between products and inventory tables not optimized

✅ Replication: Primary-replica lag: 0.8 seconds (Healthy)

⚠️ Table Bloat: 2 tables with >30% bloat (Attention needed)

customers table: 32% bloat (Last VACUUM: 8 days ago)
order_history table: 45% bloat (Last VACUUM: 14 days ago)

✅ Index Usage: Most indexes are well-utilized

⚠️ Disk Usage: 78% of allocated storage used (Monitor closely)

Recommendations:

Schedule VACUUM FULL on the customers and order_history tables
Add index on orders.order_date column
Review the JOIN between products and inventory tables
Consider increasing autovacuum frequency

Would you like me to provide more details on any of these issues or help implement the recommendations?"

4. Custom Query Execution

User: "Run this query and explain the results: SELECT COUNT(*) FROM orders WHERE created_date >= '2024-01-01'"

Agent: "I've executed your query to count orders created since January 1, 2024. Here are the results:

count
------
 3,542

Analysis:

You have 3,542 orders created since the beginning of 2024
This represents approximately 28% of your total orders (12,647)
The query executed in 0.32 seconds using an index scan on orders_created_date_idx

The monthly breakdown shows:

January 2024: 1,245 orders
February 2024: 1,187 orders
March 2024: 1,110 orders (so far)

Order volume appears to be slightly decreasing month-over-month. Would you like me to analyze this trend further or modify the query to look at specific time periods?"

5. Index Recommendations

User: "Our customer search page is slow. Can you help?"

Agent: "I'll help you improve your customer search page performance. Let me analyze the database activity related to customer searches.

Current Situation: I've identified the main query used by your customer search page:

SELECT * FROM customers
WHERE
  (first_name ILIKE '%search_term%' OR
   last_name ILIKE '%search_term%' OR
   email ILIKE '%search_term%')
ORDER BY last_updated DESC
LIMIT 50;

Performance Issues:

This query performs a sequential scan on the customers table (5.2M rows)
The ILIKE operators with wildcards at both ends prevent index usage
Average execution time: 2.8 seconds (too slow for web UI)

Recommendations:

Add Trigram Indexes for Text Search:

CREATE EXTENSION IF NOT EXISTS pg_trgm;
CREATE INDEX idx_customers_first_name_trgm ON customers USING gin (first_name gin_trgm_ops);
CREATE INDEX idx_customers_last_name_trgm ON customers USING gin (last_name gin_trgm_ops);
CREATE INDEX idx_customers_email_trgm ON customers USING gin (email gin_trgm_ops);

Add Index for Sorting:

CREATE INDEX idx_customers_last_updated ON customers(last_updated DESC);

Consider Application-Level Changes:
- Implement pagination instead of LIMIT 50
- Add minimum search term length (3+ characters)
- Consider using a dedicated search service for large datasets

Would you like me to help implement these indexes or explain more about how trigram indexes work?"

Clean Up

When you're done using the PostgreSQL Database Performance Analysis Agent, follow these steps to clean up resources:

Delete Gateway and Targets:

# Get gateway ID
aws bedrock-agentcore-control list-gateways

# List targets for your gateway
aws bedrock-agentcore-control list-gateway-targets --gateway-identifier your-gateway-id

# Delete targets first (if not deleting the entire gateway)
aws bedrock-agentcore-control delete-gateway-target --gateway-identifier your-gateway-id --target-id your-target-id

# Delete gateway (this will also delete all associated targets)
aws bedrock-agentcore-control delete-gateway --gateway-identifier your-gateway-id

Delete Lambda Functions:

aws lambda delete-function --function-name genesis-pg-analyseobjects-lambda
aws lambda delete-function --function-name pgstat-analyse-database

Delete Lambda Layer:

# Get layer version
aws lambda list-layer-versions --layer-name psycopg2-layer

# Delete layer version
aws lambda delete-layer-version --layer-name psycopg2-layer --version-number 1

Delete Parameter Store Parameters:

aws ssm delete-parameter --name "/AuroraOps/prod"
aws ssm delete-parameter --name "/AuroraOps/dev"

Delete Secrets Manager Secrets:

aws secretsmanager delete-secret --secret-id your-prod-secret-name --force-delete-without-recovery
aws secretsmanager delete-secret --secret-id your-dev-secret-name --force-delete-without-recovery

Cognito Resources (optional if you created them specifically for this use case):

aws cognito-idp delete-user-pool-client --user-pool-id your-user-pool-id --client-id your-app-client-id
aws cognito-idp delete-user-pool --user-pool-id your-user-pool-id
```ysis

Explain Query Execution Plan:

{
  "environment": "dev",
  "action_type": "explain_query",
  "query": "SELECT * FROM users WHERE email = 'user@example.com'"
}

Execute Safe Read-Only Query:

{
  "environment": "dev",
  "action_type": "execute_query",
  "query": "SELECT COUNT(*) FROM orders WHERE created_date >= '2024-01-01'"
}

Extract DDL for Database Object:

{
  "environment": "dev",
  "action_type": "extract_ddl",
  "object_type": "table",
  "object_name": "users",
  "object_schema": "public"
}

2. Database Performance Analysis

Analyze Slow Queries:

{
  "environment": "prod",
  "action_type": "slow_query"
}

Check Connection Issues:

{
  "environment": "prod",
  "action_type": "connection_management_issues"
}

Analyze Index Usage:

{
  "environment": "prod",
  "action_type": "index_analysis"
}

Monitor Autovacuum:

{
  "environment": "prod",
  "action_type": "autovacuum_analysis"
}

Analyze I/O Performance:

{
  "environment": "prod",
  "action_type": "io_analysis"
}

Check Replication Status:

{
  "environment": "prod",
  "action_type": "replication_analysis"
}

System Health Check:

{
  "environment": "prod",
  "action_type": "system_health"
}

Testing

1. Local Testing

Test Lambda functions locally using AWS SAM:

# Test performance analysis function
sam local invoke -e test-events/explain-query.json

# Test slow query analysis function
sam local invoke -e test-events/slow-query.json

2. Integration Testing

Create test events in test-events/ directory:

test-events/explain-query.json:

{
  "environment": "dev",
  "action_type": "explain_query",
  "query": "SELECT version()"
}

test-events/slow-query.json:

{
  "environment": "dev",
  "action_type": "slow_query"
}

3. End-to-End Testing

Test through Bedrock Agent Core:

# Test via AWS CLI
aws bedrock-agentcore-control invoke-gateway-target \
  --gateway-identifier your-gateway-id \
  --target-name pg-analyze-db-performance \
  --input '{"environment":"dev","action_type":"execute_query","query":"SELECT 1"}'

4. Performance Testing

Monitor Lambda function performance:

Cold start times
Memory usage
Database connection times
Query execution times

Security Considerations

Database Access

Use least-privilege database users
Implement read-only access for analysis functions
Rotate database credentials regularly
Use VPC endpoints for secure connectivity

Lambda Security

Enable encryption at rest and in transit
Use IAM roles with minimal permissions
Implement proper error handling to avoid information leakage
Monitor function invocations and errors

Network Security

Deploy Lambda functions in private subnets
Use security groups to restrict database access
Implement VPC flow logs for monitoring

Monitoring and Troubleshooting

CloudWatch Metrics

Monitor the following metrics:

Lambda function duration
Error rates
Database connection failures
Memory utilization

Common Issues

Connection Timeouts:
- Check VPC configuration
- Verify security group rules
- Increase Lambda timeout settings
Permission Errors:
- Verify IAM roles and policies
- Check database user permissions
- Validate Secrets Manager access
Query Performance:
- Monitor database load
- Check for long-running queries
- Analyze execution plans

Logging

Enable detailed logging for troubleshooting:

import logging
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)

License

This project is licensed under the MIT License - see the LICENSE file for details.
